Formát zdroje:ATX; Výkon zdroje (ve W):650; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž PPS-650FC - 80 PLUS Gold certified efficiency - Fully modular cable management - High power density design for compact size - LLC half-bridge converter with DC-to-DC technology The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back... Celý popis
Koupit za 2 167 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
91 %
CHIEFTEC zdroj Polaris Series, PPS-650FC, 650W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
Doprava:
69 Kč
Skladem
2 167 Kč
Koupit za 2 167 Kč
100 %
CHIEFTEC zdroj Polaris Series, PPS-650FC, 650W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
Doprava:
59 Kč
Skladem
2 238 Kč
Koupit za 2 238 Kč
93 %
Chieftec Polaris 650W 80 Plus Gold plně modulární zdroj
Doprava:
69 Kč
2 479 Kč
Koupit za 2 479 Kč
88 %
CHIEFTEC zdroj Polaris Series PPS-650FC / 650W / 12cm fan / akt. PFC / Modular / 80PLUS Gold - PPS-650FC
Doprava:
89 Kč
Skladem
2 267 Kč
Koupit za 2 267 Kč
84 %
CHIEFTEC zdroj Polaris Series, PPS-650FC, 650W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
Doprava:
105 Kč
Skladem
2 231 Kč
Koupit za 2 231 Kč
Popis
Formát zdroje:ATX; Výkon zdroje (ve W):650; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pro základní desku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroje:Modulární kabeláž

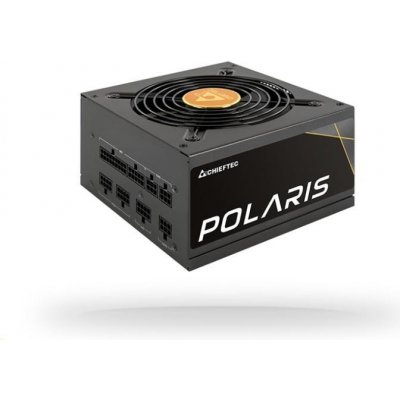

PPS-650FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
PERFORMANCE ModelPolaris 650WArticle no.PPS-650FCEAN code0753263076434Weight (without/with package)2.175 kg / 2.480 kgAC Input100-240V / 10AFrequency50-60Hz+5V22A+3,3V22A+5V & +3,3V combined120W+12V 154.2A / 650W+12V 2-+12V 1 & +12V 2 combined-P.F.>0,9-12V0,3A / 3,6W+5VsB3.0A / 15WMaximum Power650W CONNECTORS 20+4PIN ATX18 PIN EPS (4+4)28 PIN PCIe (6+2)4SATA6MOLEX3FLOPPY1 CABLE LENGHT 20+4PIN ATX6508 PIN EPS (4+4)650/1508 PIN PCIe (6+2)2x 500/150SATA2x 450/150/150MOLEX450/150/150/150FLOPPYMolex FEATURES SpecificationATX 12V 2.4Form factorPS IIEfficiency80 PLUS GoldDimension (DxWxH)140mm x 150mm x 87mmFan120mm silent fanSecurityAFC (Automatic Fanspeed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over Temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
OCP (Overcurrent protection)
UVP (Undervoltage protection)Warranty24 Months
PPS-650FC
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- High power density design for compact size
- LLC half-bridge converter with DC-to-DC technology
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
TECHNICAL SPECIFICATIONS
PERFORMANCE ModelPolaris 650WArticle no.PPS-650FCEAN code0753263076434Weight (without/with package)2.175 kg / 2.480 kgAC Input100-240V / 10AFrequency50-60Hz+5V22A+3,3V22A+5V & +3,3V combined120W+12V 154.2A / 650W+12V 2-+12V 1 & +12V 2 combined-P.F.>0,9-12V0,3A / 3,6W+5VsB3.0A / 15WMaximum Power650W CONNECTORS 20+4PIN ATX18 PIN EPS (4+4)28 PIN PCIe (6+2)4SATA6MOLEX3FLOPPY1 CABLE LENGHT 20+4PIN ATX6508 PIN EPS (4+4)650/1508 PIN PCIe (6+2)2x 500/150SATA2x 450/150/150MOLEX450/150/150/150FLOPPYMolex FEATURES SpecificationATX 12V 2.4Form factorPS IIEfficiency80 PLUS GoldDimension (DxWxH)140mm x 150mm x 87mmFan120mm silent fanSecurityAFC (Automatic Fanspeed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over Temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
OCP (Overcurrent protection)
UVP (Undervoltage protection)Warranty24 Months
Parametry
| Formát zdroje | ATX |
| Výkon zdroje | 650 W |
| Výrobce | Chieftec |
