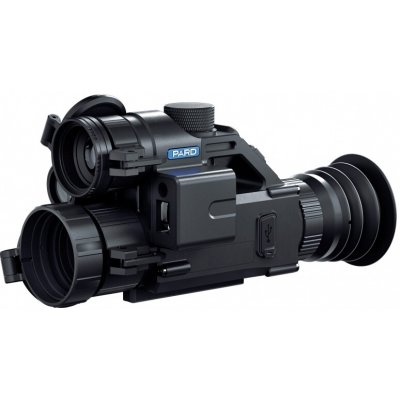

Pard Landsat 256 Mini (19/30mm 940nm LRF) LA2M-19/30/940/LRF

Specifications
Sensor

- Type: Uncooled VOx (vanadium oxide)
- Resolution(pixel): 256*192
- Pixel Velikost: 12*12
- NETD: ≤25mK（0.025℃）
- Frame Rate(Hz): 50
- Detection Distance(m): 900

Optics

- Image Engine: Pard IREA
- Objective Lens(mm): 19/25
- Optical Magnification(x): 3.2/4.2
- Digital Zoom(x): 2/4/6/8
- View of View (Horizontal): 9.2°/7°
- View of View (Vertical): 6.9°/5.3°
- View of View (Diagonal): 11.5°/8.8°
- Focus Range: 3m-∞

Display

- Type: OLED
- Resolution(pixel): 1024*768
- Scene Mode: City/Rain/Forest
- Image Mode: WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
- Eye Relief(mm): 25
- Diopter Adjustment(D): -5~5

Photo / Video

- Photo Resolution(pixel): 1024*768
- Photo Format: . JPG
- Video Resolution(pixel): 1024*768
- Video Format: . MP4
- Storage: Built-in EMMC (32 GB)

Main Function

- LRF Detection Range(m/yd): 1000/1200
- PIP: Yes
- Gyroscope: Yes
- Loop Recording: Yes
- Hot Track: Yes
- E-compass: Yes
- Shutter: Mechanical shutter
- Microphone: Yes
- Firmware Upgrade: Yes

IR Illuminator

- IR Power: 5W
- IR Illuminating Level: 3 Levels
- IR Distance(m): 350
- IR Wavelength(nm): 850/940

Connections

- USB Type-C: Yes
- WiFi: Yes
- Supported Apps: PardVision2

Power Supply

- Battery Type: Lithium Ion 18650*1
- Output Voltage(V): 3.7
- Operating time(h): ≤6
- External Power Supply(V): Type-C

Environmental Characteristic

- Degree of Protection: IP67
- Operating Temp(℃/℉): -30 ~ +55 / -22 ~ +131

Material

- Housing: Aluminium Alloy
- Objective Lens: All-glass multi-coated lens

Measurement

- Product Dimension(s IR illuminator&LRF, L x W x H, mm): 170*77*85
- NW/pcs(with LRF&battery, g): 520
